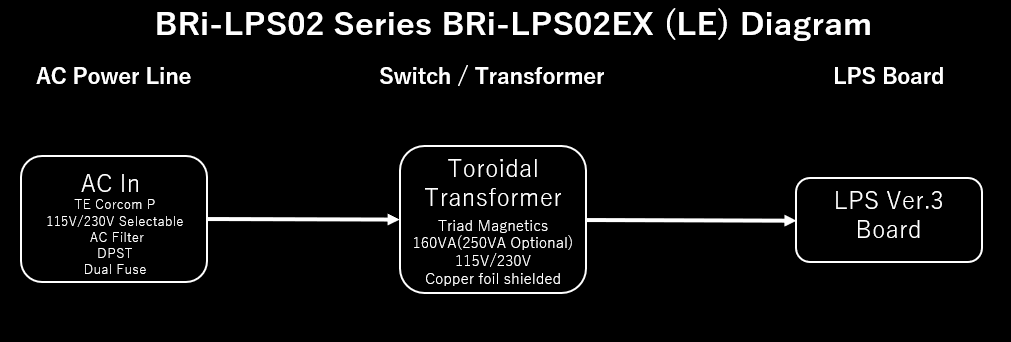

BRi-LPS02EX Ver.1.1

Direct trade distribution price 98,000 JPY (including shipping costs in Japan)

The LPS01EX was limited to a 100 VA transformer due to the limitations of the Takachi HEN case.
The LPS02EX uses the Takachi-HY case, is equipped with a 160VA toroidal transformer and has enhanced heat dissipation capability, making it a high current-capable version of the LPS01.

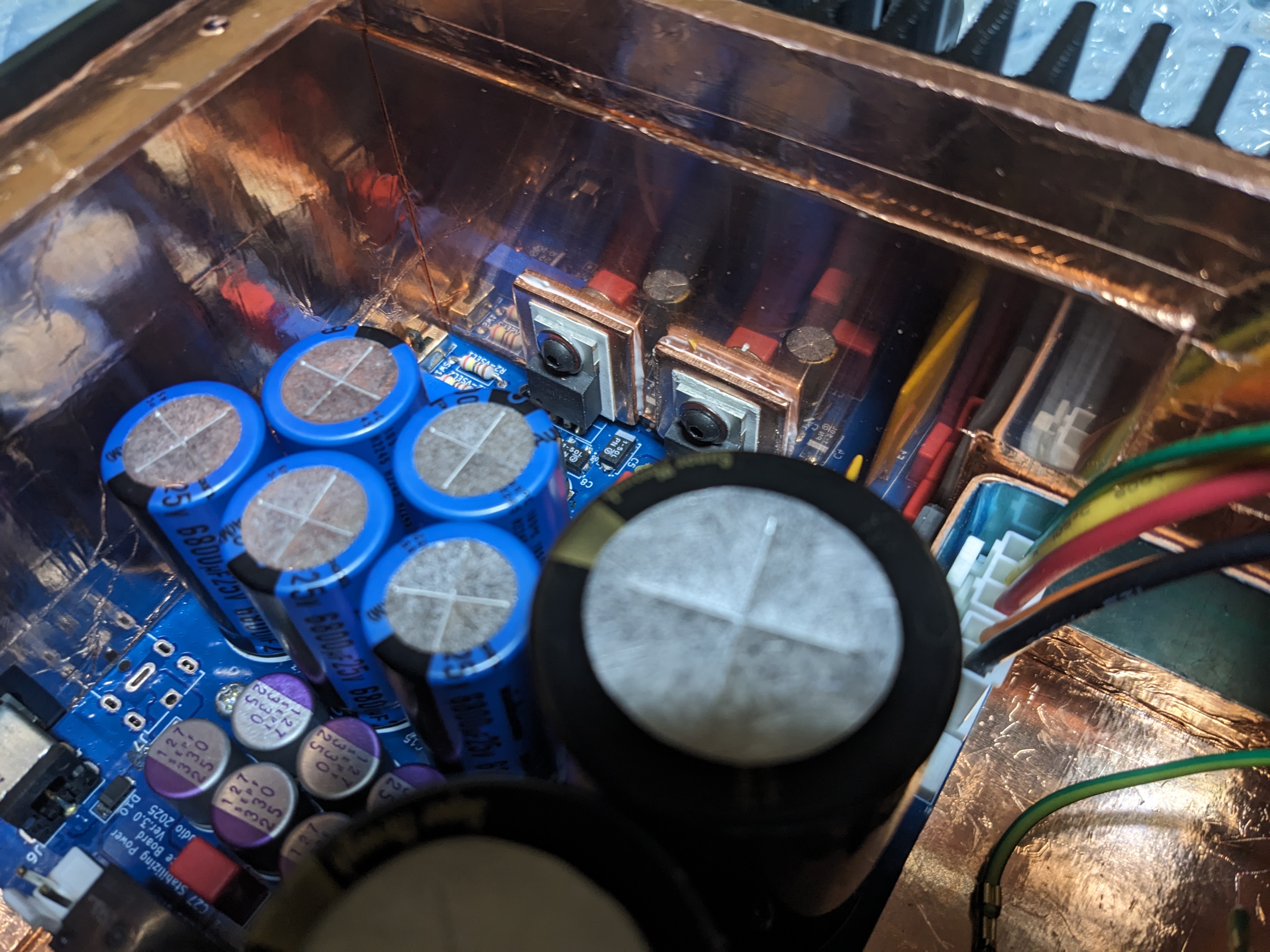

LPS Ver.3 linear power supply board developed from the BRi-LPS01EX LPS board.

Standard edition using four Nichicon UKA 35V/3300uF.

• 5 Nichicon UKA 25V/6800uF for secondary filter + WIMA MKP2
• Individual polymer capacitors for tertiary filter + WIMA MKP2
  Selectable solid polymer capacitors for tertiary filter from 5~24V
  Nichicon FPCAP RR7 16V/330μF x 8 (selectable up to 15V)
  Panasonic OS-CON SEPF 25V/330μF x 8
  *Nichicon PLG 16V/470μF x 8 (selectable up to 15V)
  *Nichicon FPCAP RNL 25V/560μF x 8
• Parallel linear regulators to handle currents in excess of 5 A, but with SMD diodes and some Vishay MMB MELF metal film resistors, all in a size of conventional LPS linear PCB + 1 cm.
• 5~24 V, customisable by selecting the last two types
  (switchable, one output)
• Up to 7 A up to 15 V (10 A with 2 μ copper foil board option)
• 5A max. at 24V
• Aluminium heat sink + copper foil shield + copper heat spreader
• 160VA copper foil shielded toroidal transformer for selected voltages
• Inrush current protection circuit for selected voltages.

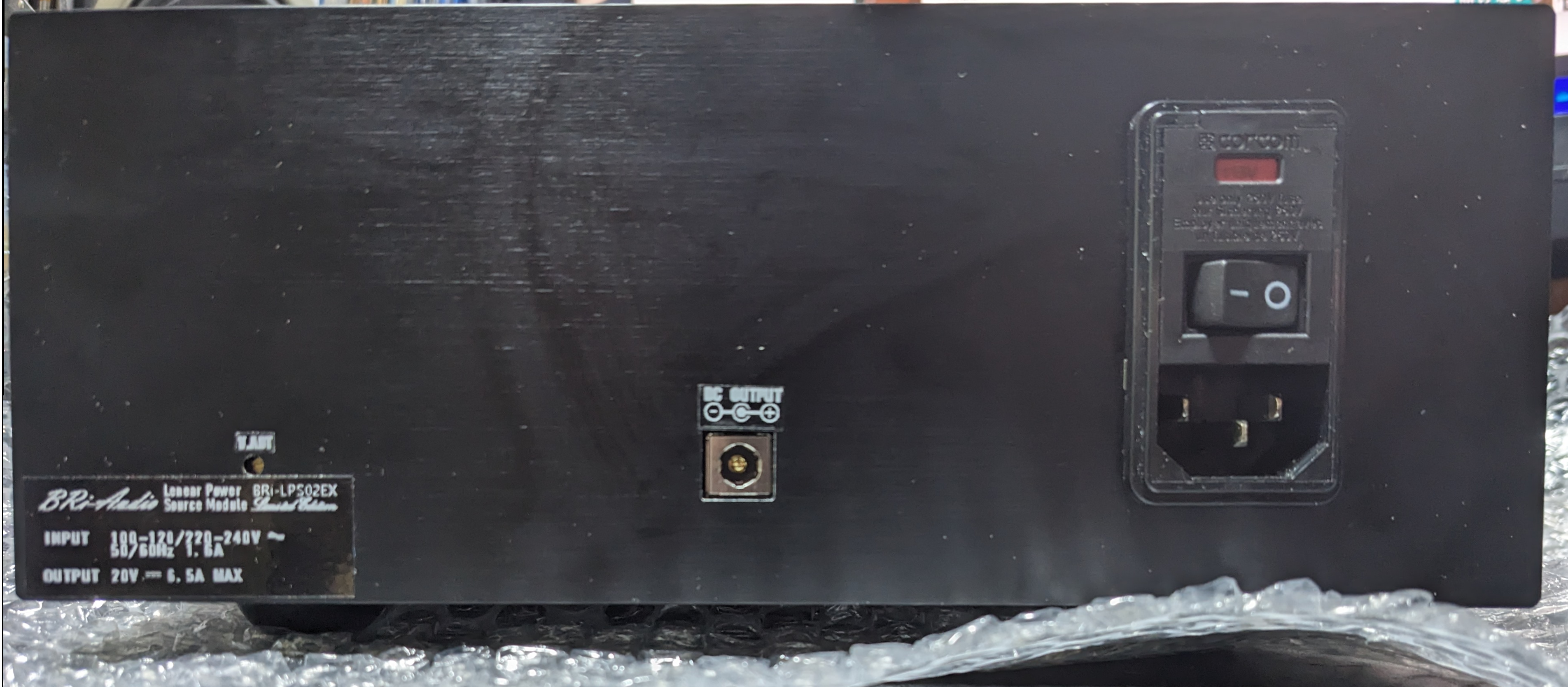

• Singatron OD5.5/ID2.1 (or 2.5) DC jack
  Option to add one additional Singatron jack and one panel mounted output terminal

*Available for selection when available.

AC and DC cables are not included. Please prepare separately.
