BRi-LPS02EX-D with Limited Edition

Direct trade distribution price 130,000 JPY (including shipping costs in Japan)

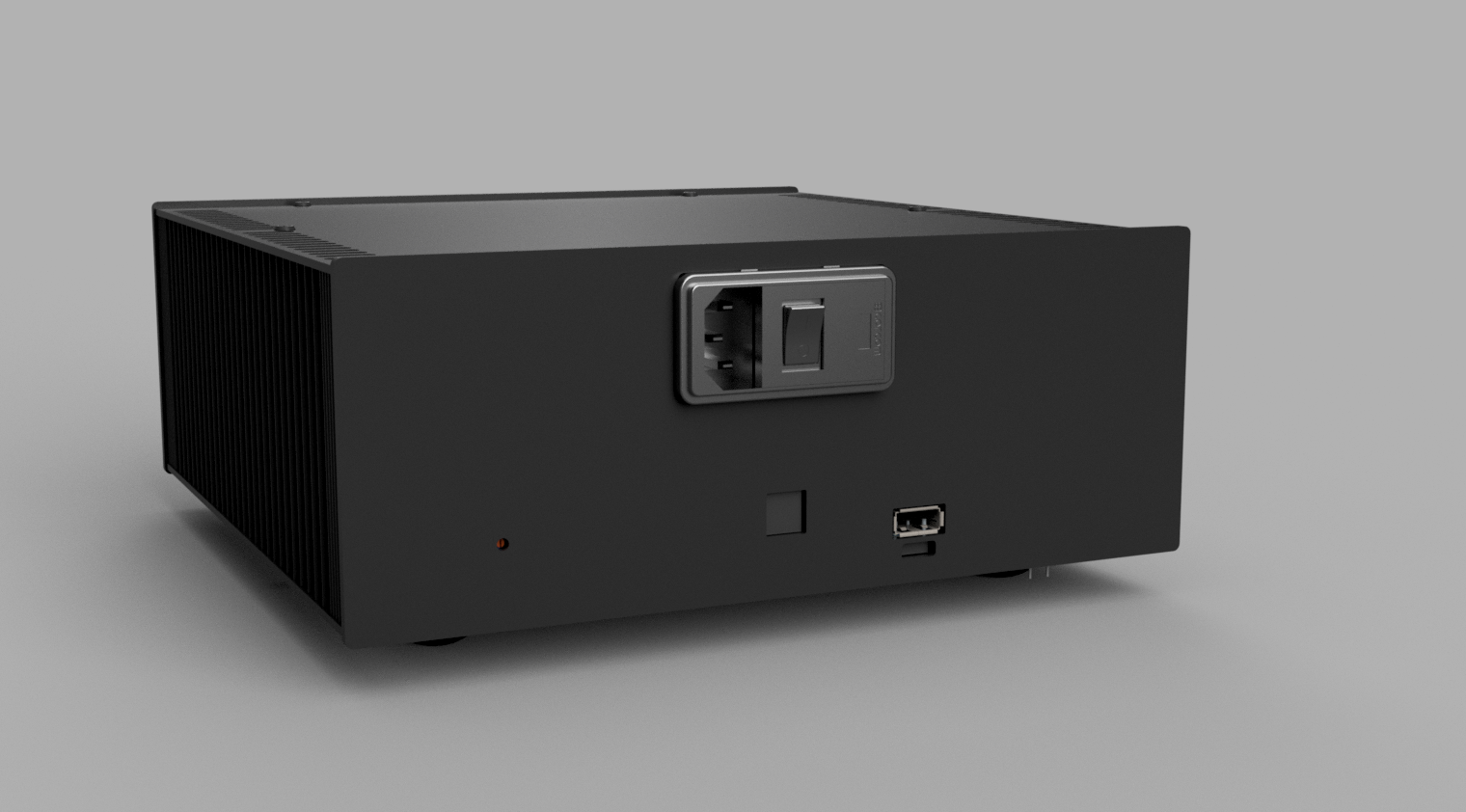

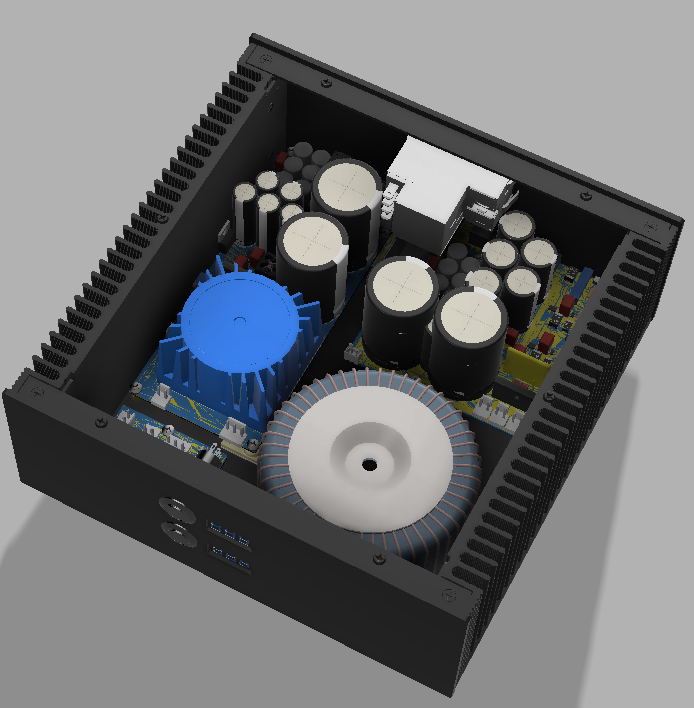

Some images are prototypes in progress.

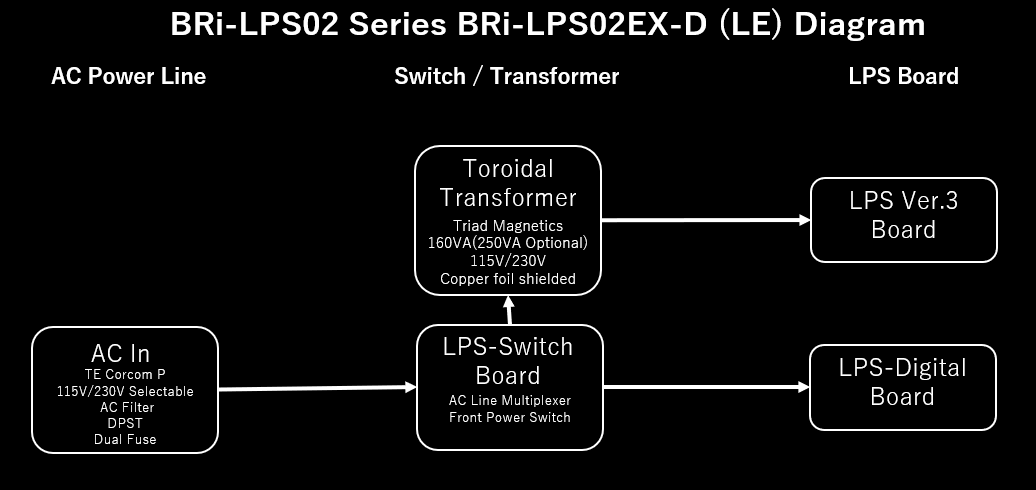

BRi-LPS02EX with an additional 5 V/3 A second system.
Independent design from toroidal transformer for high sound quality.
Part of the AC side internal wiring uses Oyaide Electric 102SSC 3398-22 cable.

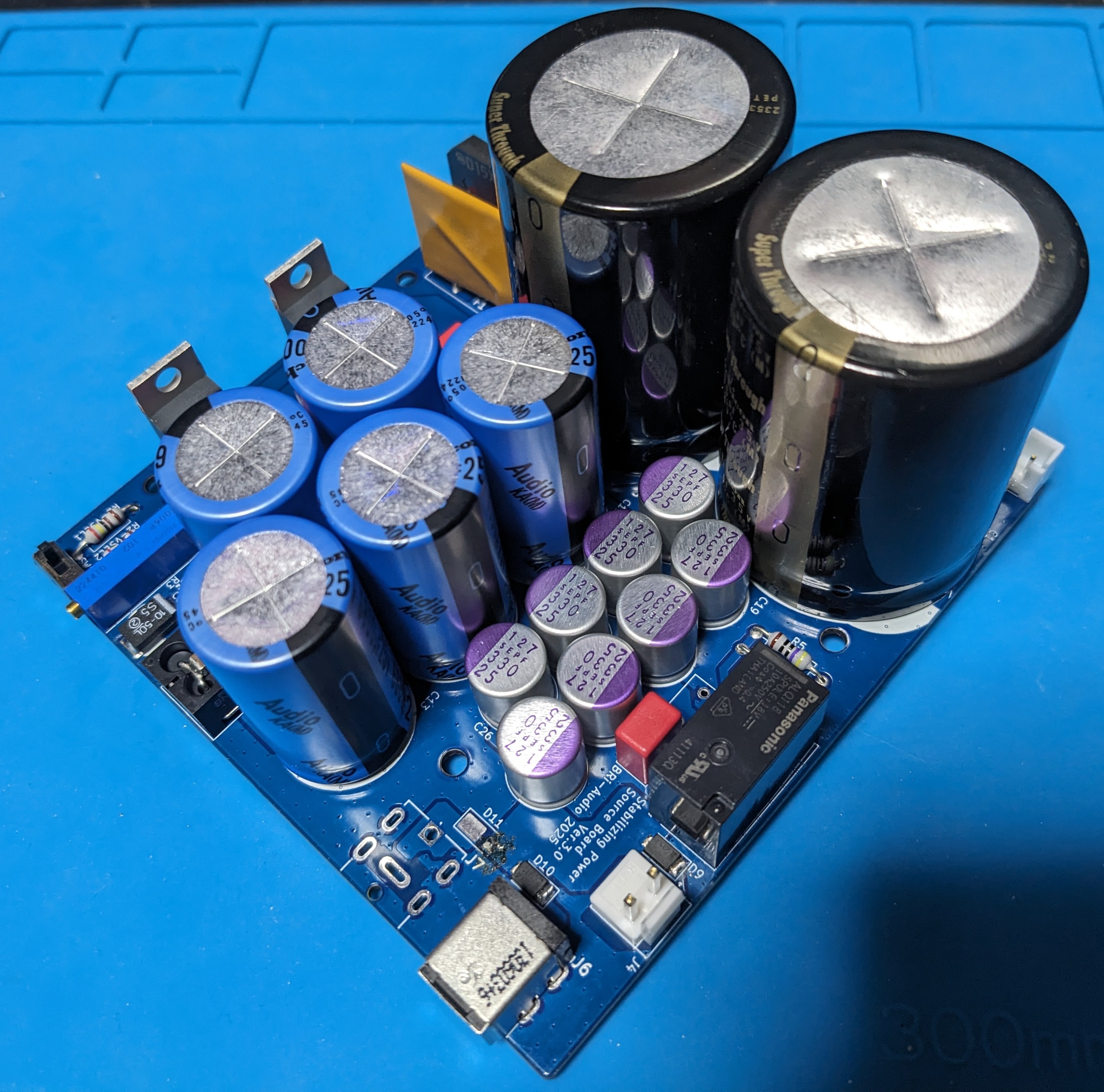

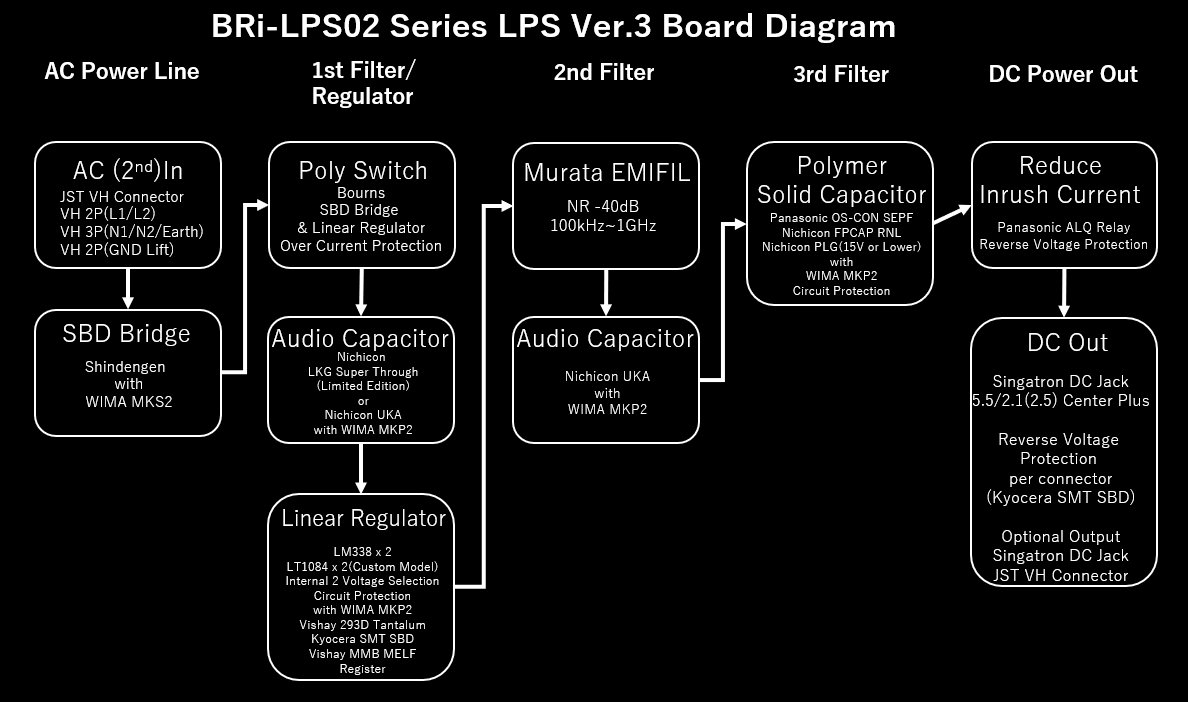

DC Output 1 (LPS Ver.3 Board)

Limited Edition using two top-of-the-range audio power supply smooth Nichicon LKG Super Through 35V/6800uF, although discontinued in the primary filter, and a standard edition using four Nichicon UKA 35V/3300uF.

• 5 Nichicon UKA 25V/6800uF for secondary filter + WIMA MKP2
• Individual polymer capacitors for tertiary filter + WIMA MKP2
  Selectable solid polymer capacitors for tertiary filter from 5~24V
  Eight Nichicon PLG 16V/470uF (selectable up to 15V)
  Eight Panasonic OS-CON SEPF 25V/330uF 8 x FPCAP RNL 25V/560uF
• Parallel linear regulators to handle currents in excess of 5 A, but with SMD diodes and some Vishay MMB MELF metal film resistors, all in a size of conventional LPS linear PCB + 1 cm.
• 5~24 V, customisable by selecting the last two types
  (switchable, one output)
• Up to 7 A up to 15 V (10 A with 2 μ copper foil board option)
• 5A max. at 24V

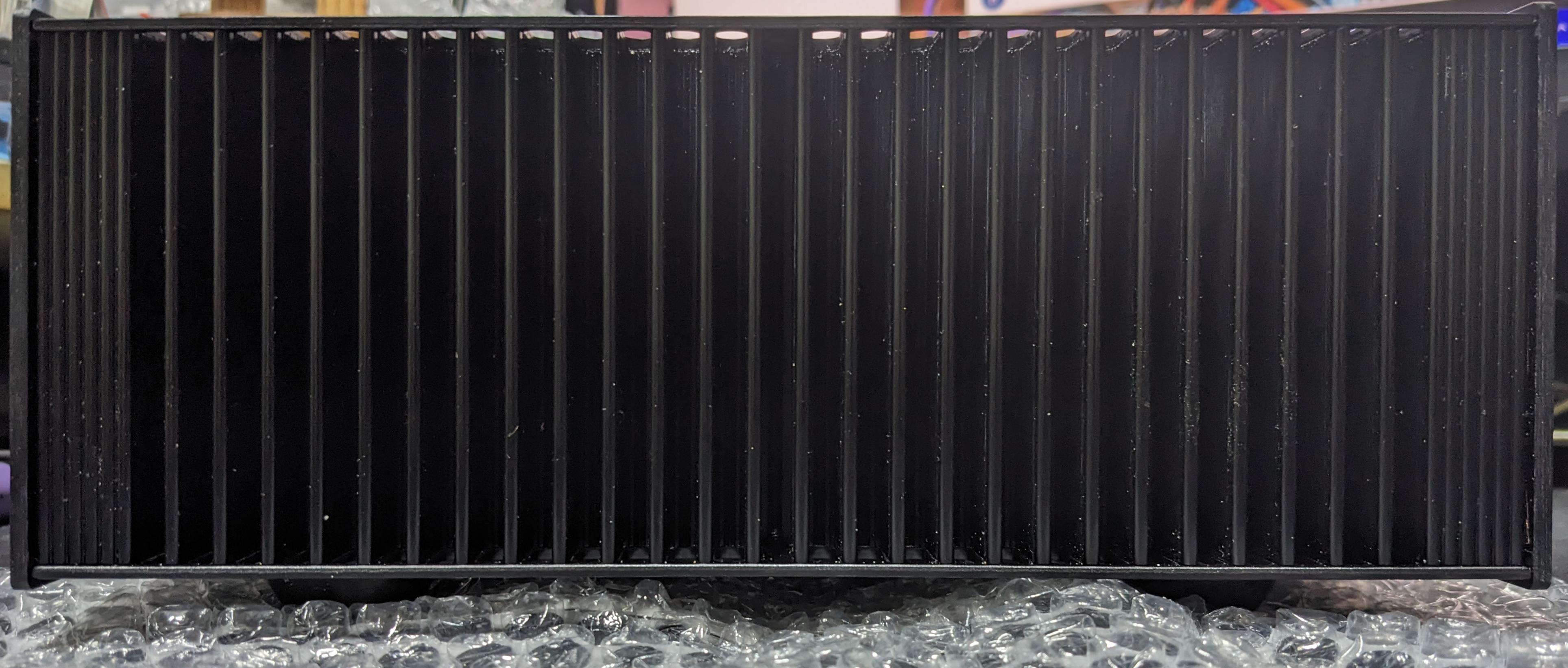

• Aluminium heat sink + copper foil shield + copper heat spreader

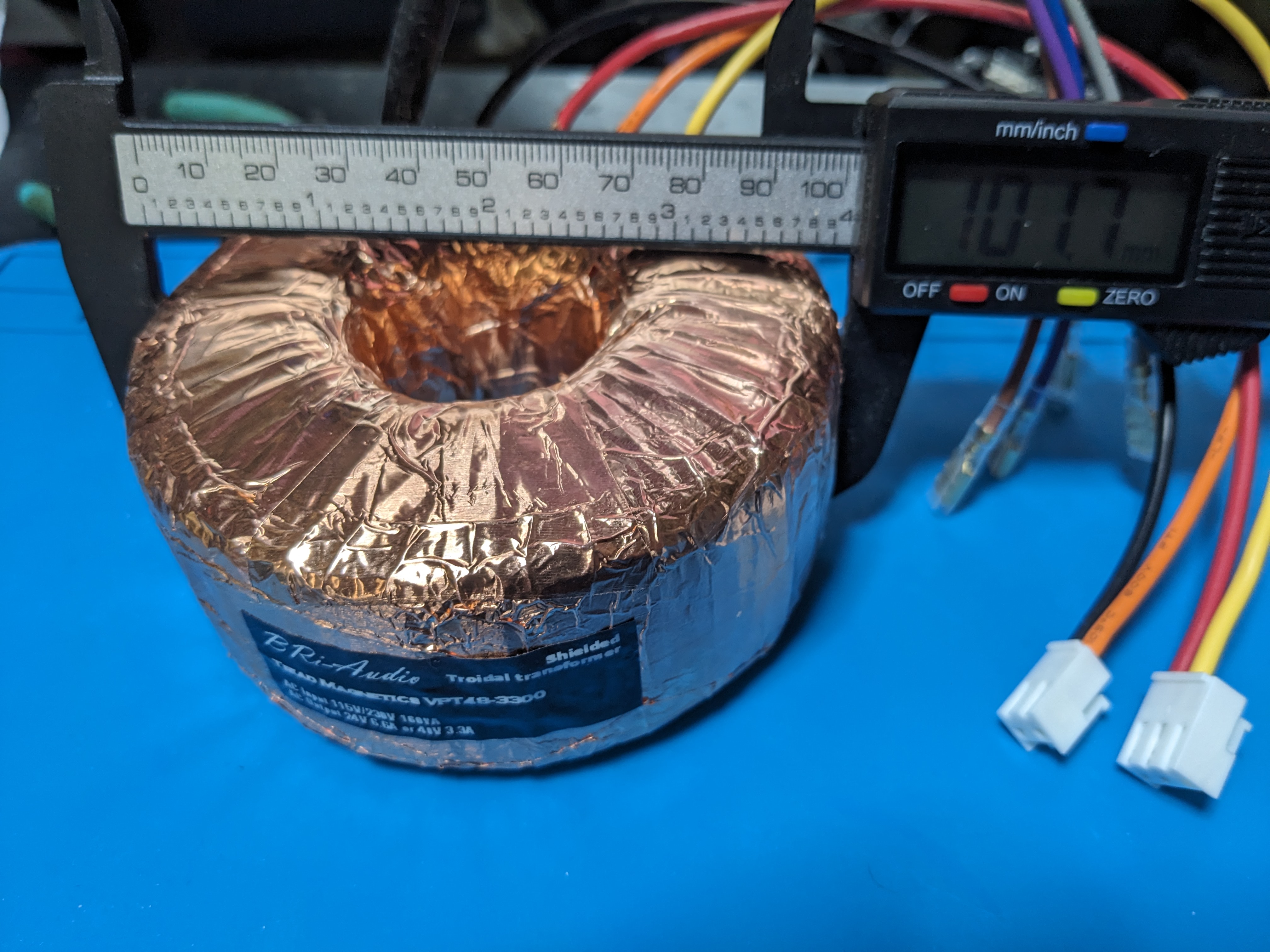

• 160VA copper foil shielded toroidal transformer for selected voltages
• Inrush current protection circuit for selected voltages.
• Singatron OD5.5/ID2.1 (or 2.5) DC jack
  Option to add one additional Singatron jack and one panel mounted output terminal

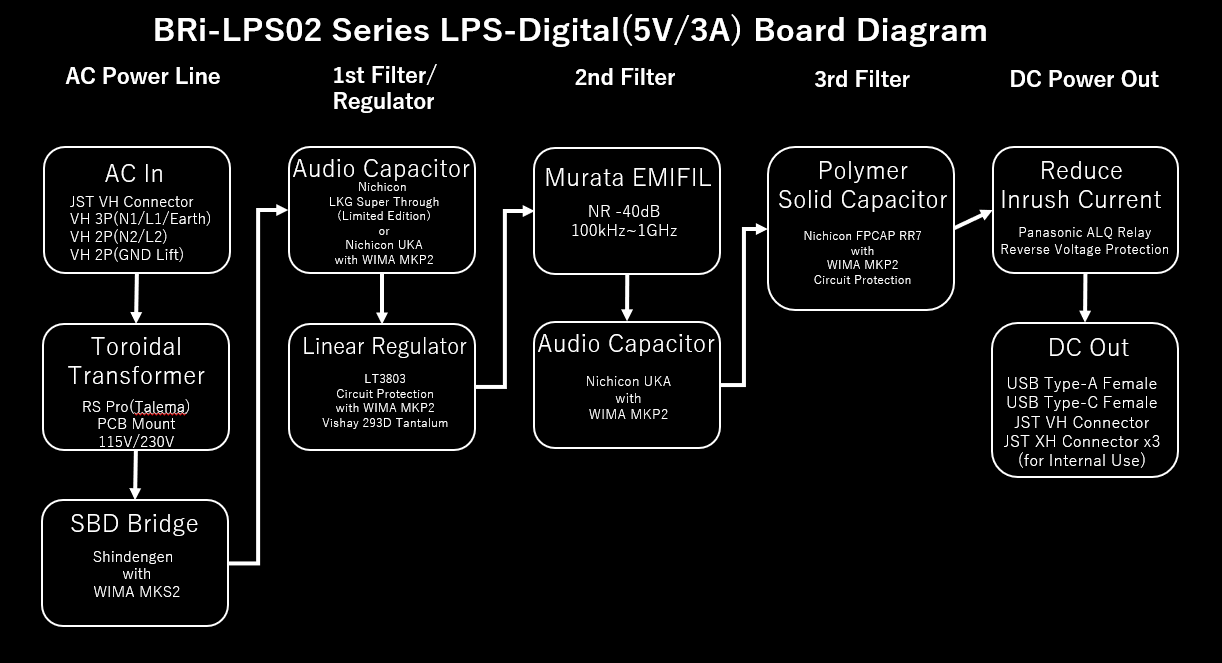

DC Output 2 (LPS-Digital Board)

Limited Edition using two top-of-the-range audio power supply smooth Nichicon LKG Super Through 35V/6800uF, although discontinued in the primary filter, and a standard edition using four Nichicon UKA 35V/3300uF.

• 5 Nichicon UKA 25V/6800uF for secondary filter + WIMA MKP2
• 8 Nichicon FPCAP RR7 16V/330uF for tertiary filter + WIMA MKP2
• LDO linear regulator with excellent over-response and anti-noise performance.
• Uses PCB-mounted toroidal transformers
• 5V 3A max.
• Power output via USB Type-A and Type-C connectors
  Additional panel-mounted output terminals available as an option

The price of the Limited Editon and the standard edition will be the same.
As soon as KG Super Through is no longer available, it will be replaced by the standard edition.
For more information, please contact us.

AC and DC cables are not included. Please prepare separately.
