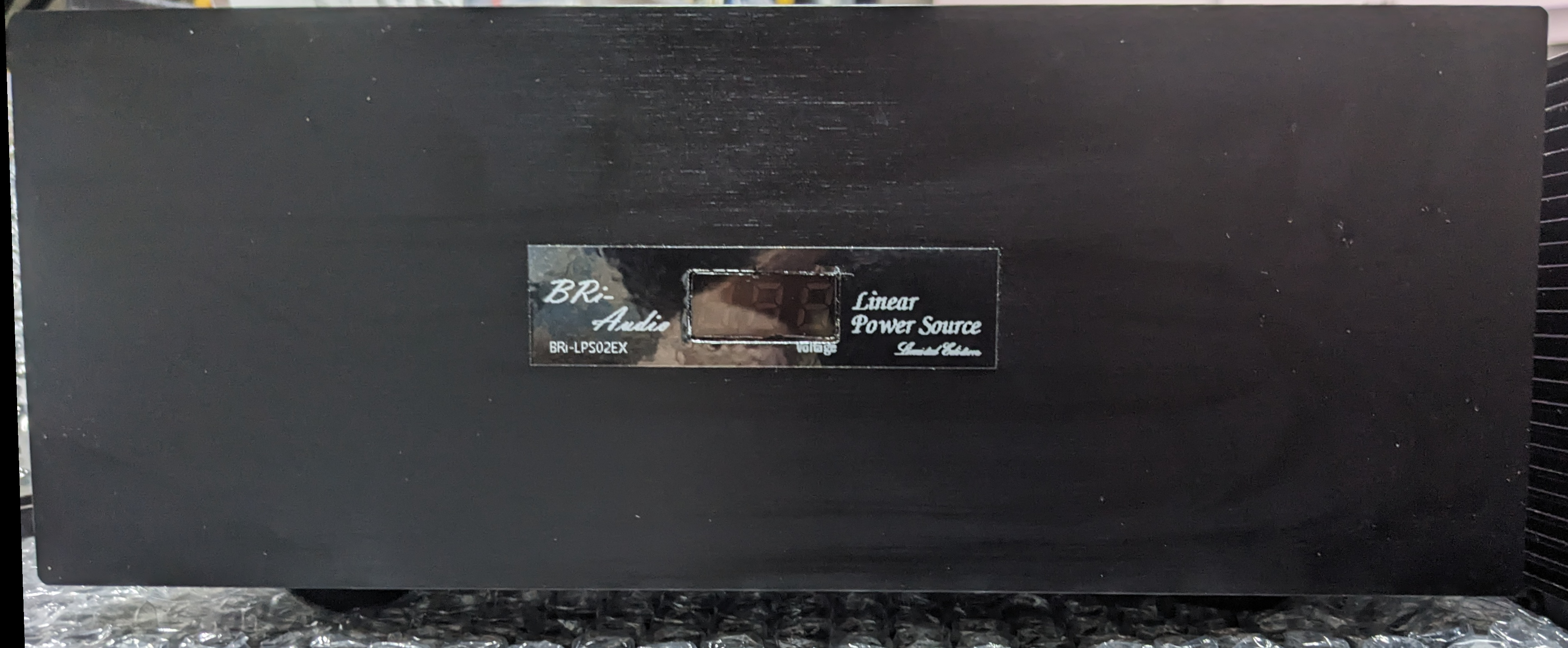

BRi-LPS02EX

Selects the last 2 voltages from 5~24V, 1 system output that can be switched internally.

Primary filter.

• Nichicon KG Super Through (Limited Edition)
• Nichicon UKA (Normal Edition)

Linear power supply with maximum 7 A output and optional additional terminals using LPS Ver. 3 board with linear regulator in parallel based on linear power supply LPS01, which combines a total smoothing capacity of approx. 50,000 uF and wide bandwidth filter by using Nichicon KG Super Through (Limited Edition) and three-stage filter.

Solid polymer capacitors in the tertiary filter can be selected from three types as in the PSM02 series.

BRi-LPS02EX →

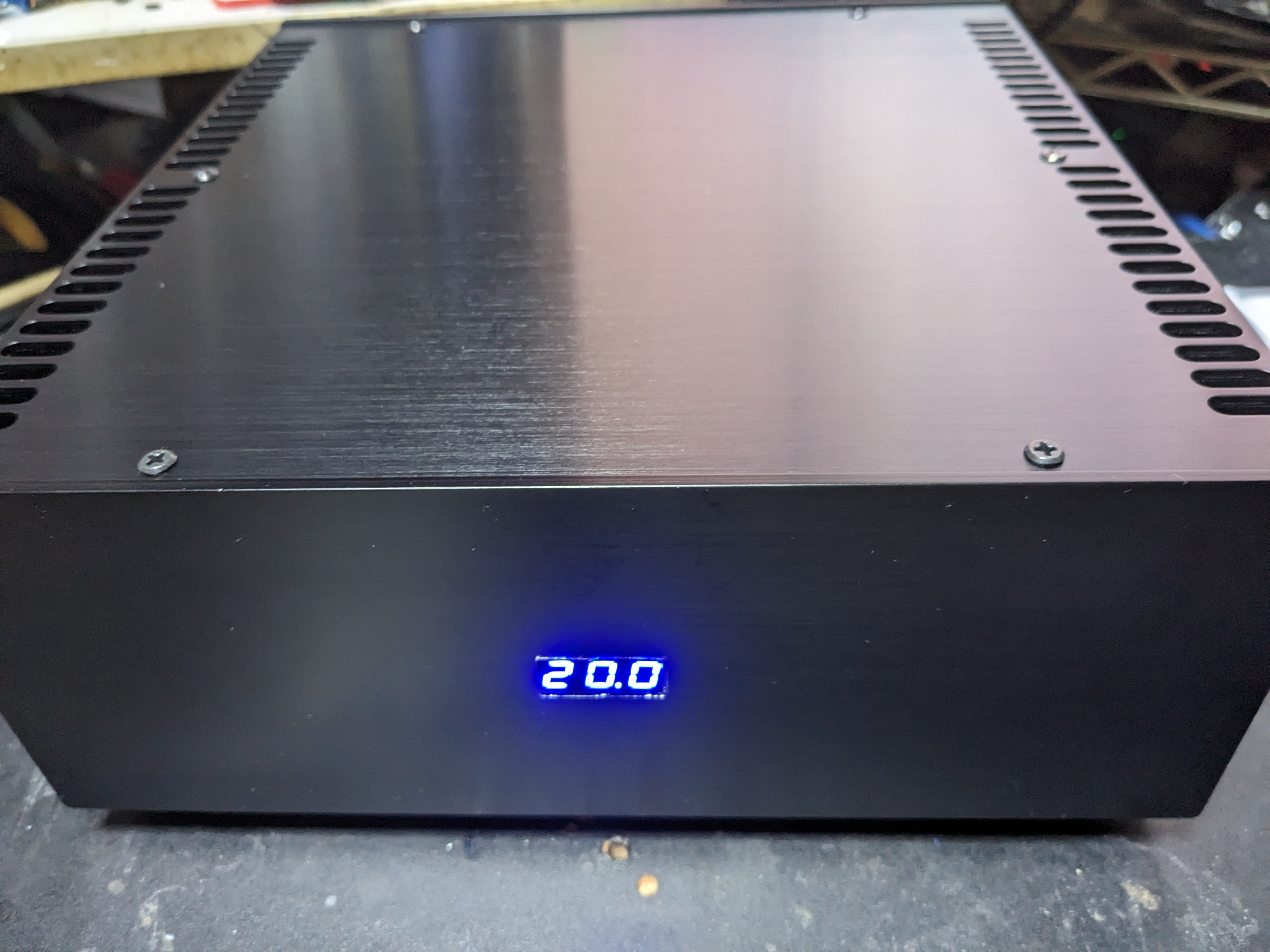

BRi-LPS02EX-D

BRi-LPS02EX model with a second output of 5 V fixed/max 3 A.
Equipped with separate front switch and voltmeter for each output system for improved convenience.

1st system Selects the two most recent voltages from 5-24 V, 1 system output, max. 7 A.

2nd system 5V/3A USB Type-A and Type-C output

BRi-LPS02EX-D →

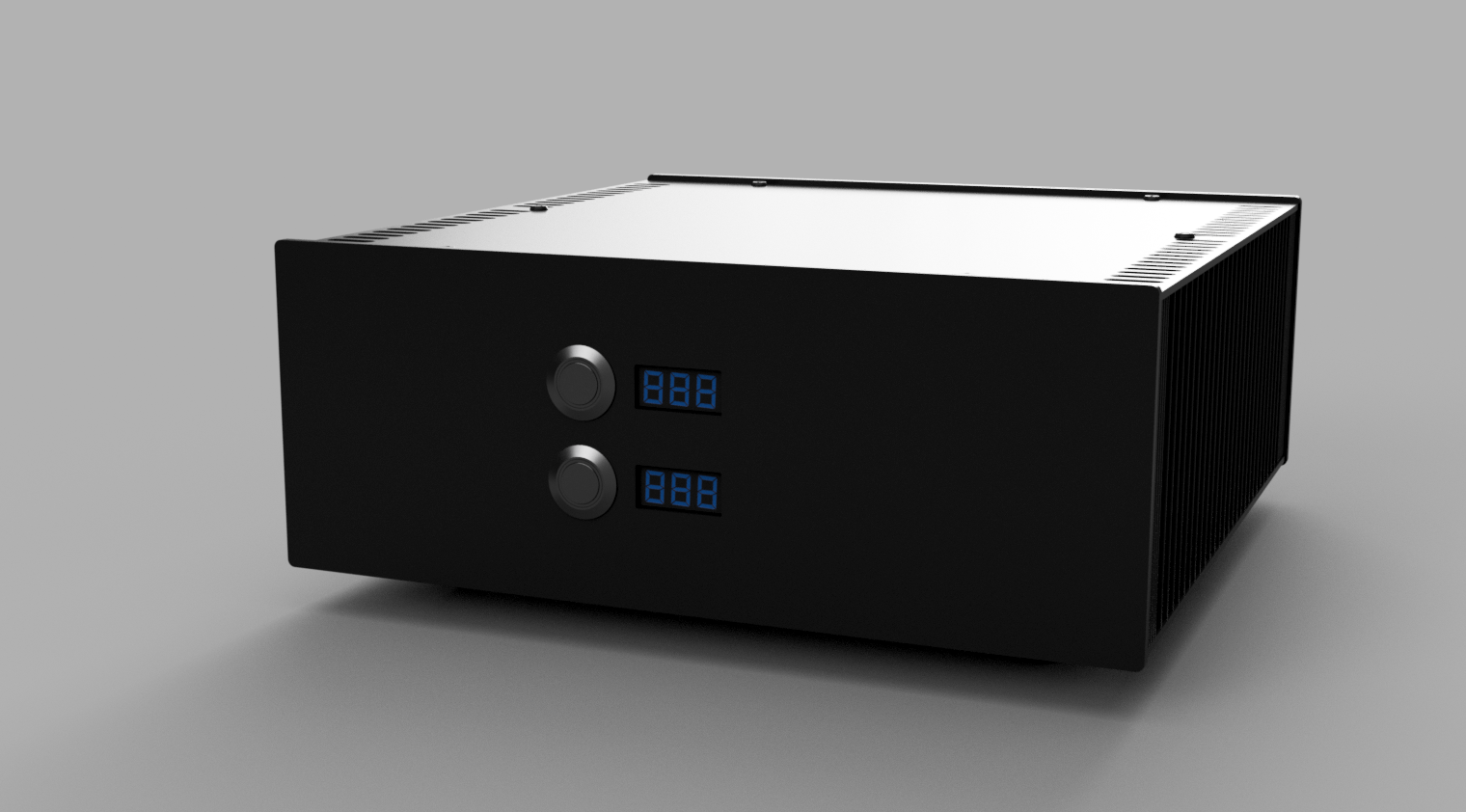

BRi-LPS02EX-T

Customisable 2-system output model incorporating an LPSVer.3 board and two sets of 100VA toroidal transformers.

1st system Selects the last 2 voltages from 5-24 V and outputs on 1 system, max. 5 A

2nd system Selects the last 2 voltages from 5-24 V and outputs 1 system, max. 5 A.

Currently under design

BRi-LPS02-PN

Positive and negative power supply model combining LPS-Differential board and 50VA toroidal transformer.

±5~19V (max. 20V) 1.5A

Currently under design.
